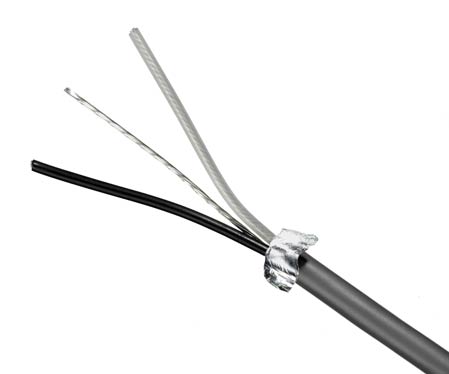

Quabbin Multiconductor Instrumentation, Audio, Control, Broadcast, AWM 2092 – 20 AWG, 2 conductor, shielded, PVC, Chrome Gray
Part Number:
4540
RoHS Compliant:
Yes
Jacket Color: Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.
Construction Details
AWG:
20
Solid/Stranded:
Stranded
Stranded Copper:
7/28
Insulation:
Polypropylene, .009"
Shield:
Yes
Jacket Type:
PVC
Jacket Color:
Chrome Gray
Overall Diameter:
.204"
Other Details:
Drain
Physical Properties
Temp Max.:
60 & 75
Voltage Rating Max.:
300
