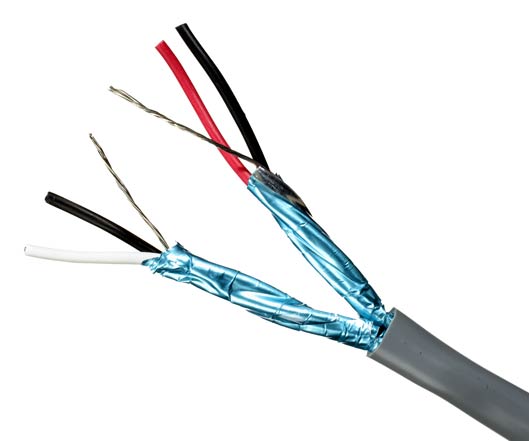

Quabbin Multipair RS-422, AWM 2448 – 24 AWG, 3 pair, unshielded with shielded pairs, PVC, Chrome Gray

Part Number:
8606
RoHS Compliant:
Yes
Jacket Color: Chrome Gray
Colors shown are a representation only. If you require color matching please contact us direct.

Construction Details

Pair Count:
3
AWG:
24
Solid/Stranded:
Stranded
Stranded Copper:
7/32
Insulation:
Polypropylene, .023"
Shield:
No
Jacket Type:
PVC
Jacket Color:
Chrome Gray
Overall Diameter:
.324"
Other Details:
Drain
Shielded Pairs

Ratings and Approvals

CM
CMG
RoHS Compliant:
Yes

Physical Properties

Temp Max.:
60
Temp Min.:
-20
Voltage Rating Max.:
300
