DataMax Extreme Ethernet Cat 5e, Hi Flex, AWM 2463 – 24 AWG, 2 pair, shielded, TPE, Black

Part Number:
5023
RoHS Compliant:
Yes

Send Email | Add to my list  | View my list

Download PDF specifications sheet
Request Information
How to purchase
Flex report

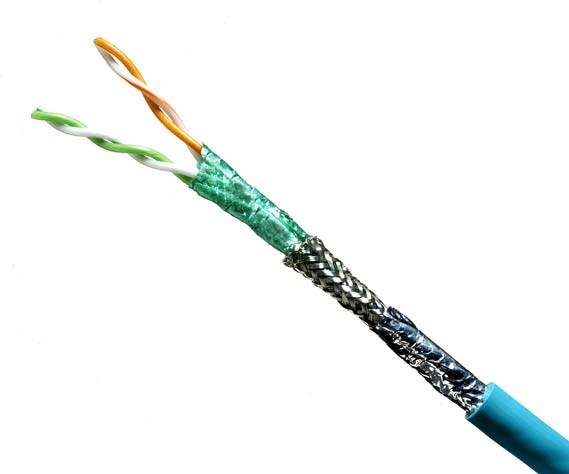

DataMax Extreme Ethernet Cat 5e, Hi Flex, AWM 2463 – 24 AWG, 2 pair, shielded, TPE, BlackRepresentative picture, may not match exact configuration of product.
Jacket Color: Black
Colors shown are a representation only. If you require color matching please contact us direct.
Available in other colors: Gray Red Orange Blue Teal

Construction Details

Pair Count:
2
AWG:
24
Solid/Stranded:
Stranded
Stranded Copper:
7/32
Insulation:
High Density Polyethylene, .011"
Shield:
Yes
Jacket Type:
TPE
Jacket Color:
Black
Available in other colors: Gray Red Orange Blue Teal
Overall Diameter:
.265"
Other Details:
Braid

Ratings and Approvals

CM
CMX Outdoor
RoHS Compliant:
Yes

Physical Properties

Temp Max.:
75 & 80 (Jacket 105, 75 Oil)
Temp Min.:
-40
Voltage Rating Max.:
600

Notes

Tested To:
100 MHz
